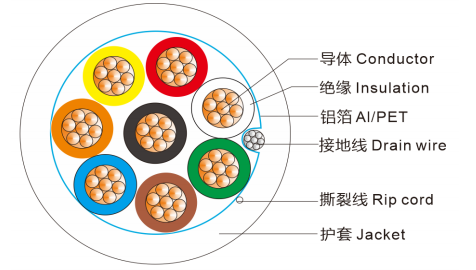

8×0.34mm2 22AWG Bare Copper, PE Insulation, Tinned Copper Drain Wire, PVC White Jacket
Applications The communication cable used for close range audio communication and long range high frequency carrier and digital communication and signal transmission.
| Cross-section | 22AWG/8C |
|---|---|
| Structure | 7/0.254±0.01mm |
| Material | Bare Copper |
| Insulation O.D | 1.20±0.10mm |
| Material | PE |
| Color | Black, Red, White, Green, Brown, Blue, Orange, Yellow |
| Jacket O.D | 5.0±0.3mm |
| Material | PVC |
| Color | White |
