Application
Industrial automation and control systems, ship and ocean engineering, mining and underground engineering, power and energy facilities, and special harsh environments.

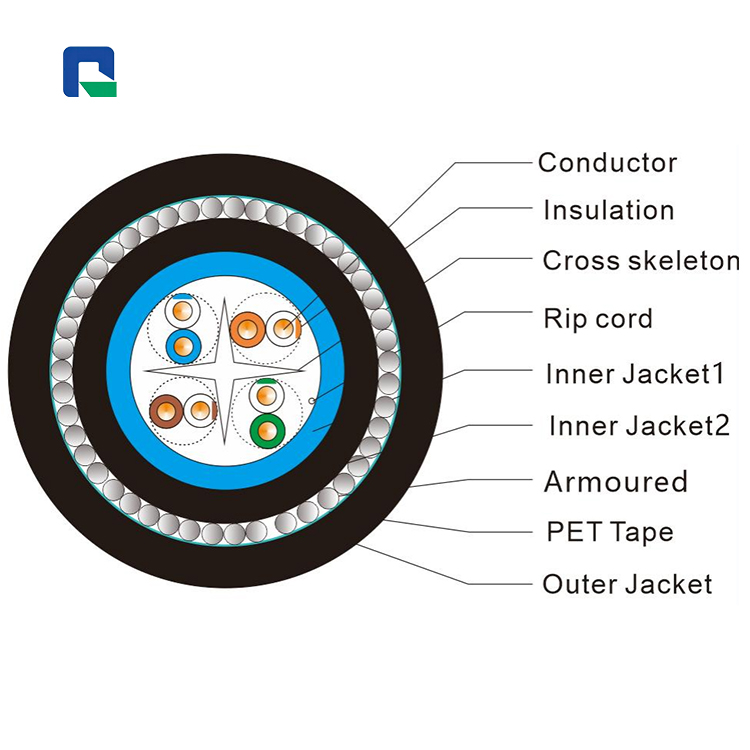

Cable structure
Conductor
| Cross-section | 23AWG/4P |
|---|
| Structure | 1/0.56±0.02mm |
|---|
| Material | Solid Bare Copper Wire |
|---|
Insulation
| Insulation O.D | 1.0±0.05mm |
| Material | Solid-PE |
| Color | BU,WH/BU,OG,WH/OG,GN,WH/GN,BN,WH/BN |
Cabling
| Arrange | 4PR Stranded+ lsoation Filler |
| O.D | 4.80±0.20mm |
Inner Jacket 1
| Jacket O.D | 5.80±0.50mm |
| Material | LSZH |
| Color | Optional |
Inner Jacket 2
| Jacket O.D | 7.40±0.50mm |
| Material | LSZH |
| Color | Black |
Armoure
| Material | Galvanized Steel Wire |
| Coverage | ≥90% |
| Wrap | Pet Tape |
Outer Jacket
| Jacket O.D | 12.0±0.50mm |
| Material | LSZH |
| Color | Black |
Technical data
Electrical parameters
| Inner Conductor DC Resistance | ≤9.5Ω/km |
| Resistance unbalance | Resistance unbalance at one pair:<2% Resistance unbalance at between pairs: s4% |
| Electric strength | Conductor/conductor 导体间:DC 1.0kV/1min |
| Insulation resistance | >5000MΩ/km （20℃ DC100-500V） |
| Max Pair Mutual Capacitance | <5.6nF100m |
