Application
Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

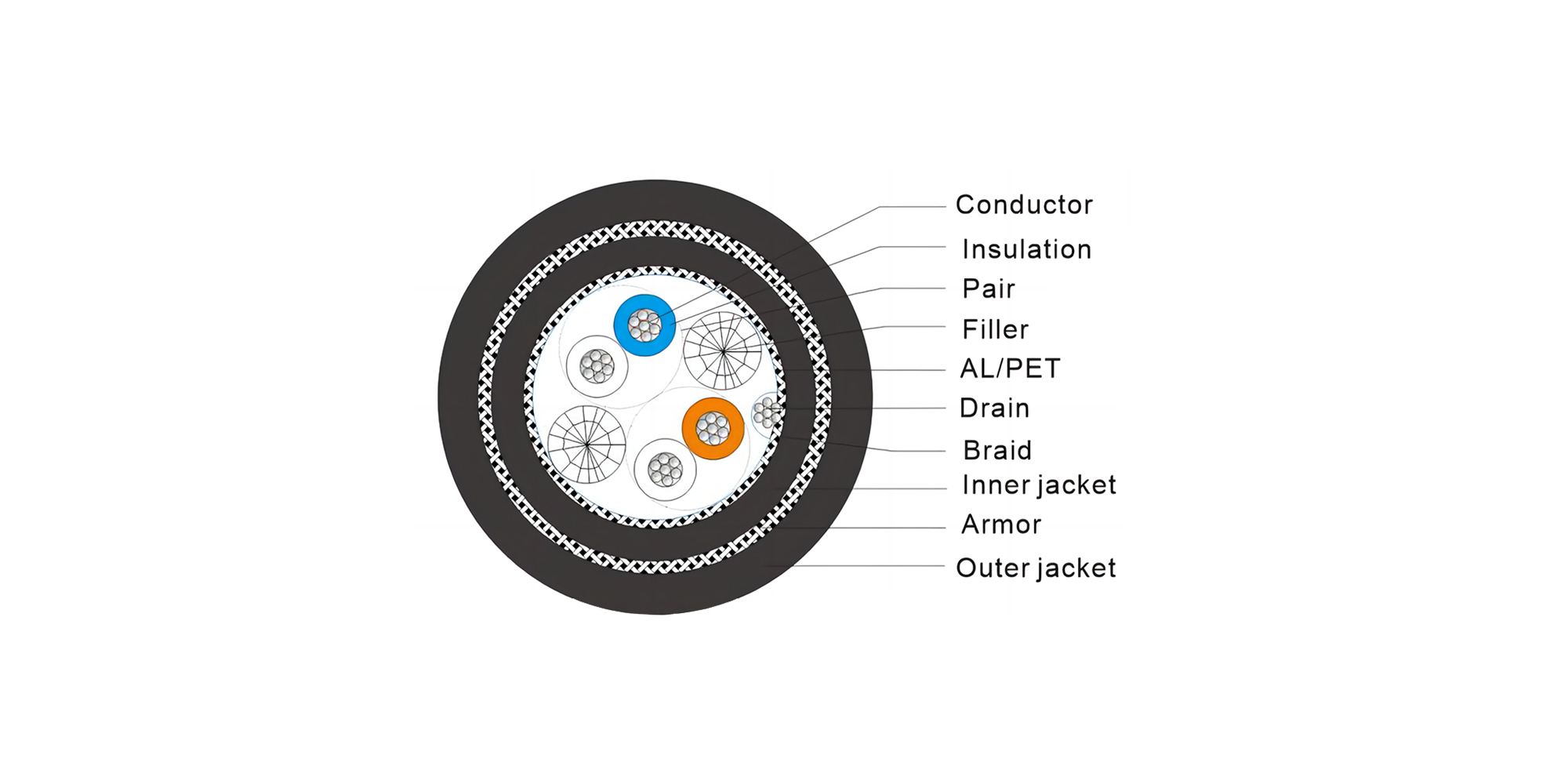

Cable structure
Conductor
| Cross-section | 20AWG/2P |
|---|
| Structure | 7/0.32±0.008mm |
|---|
| Material | Tinned Copper |
|---|
Insulation
| Insulation O.D | 1.90±0.10mm |
| Material | Foam-PE |
| Color | White(Orange), Orange, White(Blue), Blue |
Shielded
| Braid Material | Tinner copper |
| Coverage | 80% |
Inner Jacket
| Jacket O.D | 9.0±0.30mm |
| Material | LSZH SHF1 |
| Color | Black |
Armor
| Armor Braid | Steel Wire Braiding |
| Coverage | 90% |
Outer Jacket
| Jacket O.D | 13.0±0.20mm |
| Material | LSZH SHF1 |
| Color | Black |
Technical data
Electrical parameters
| Inner Conductor DC Resistance | ≤35.8Ω/km |
| Characteristic Impedance | Nom.120Ω |
| Capacitance Conductor to Conductor | Nom. 41pF/m |
| Capacitance Conductor & Shield | Nom. 76pF/m |
| Operating Voltage | 300V |
physical parameters
| Temperature Range | -20℃ to +70℃ |
