RS485 1×2×24AWG, TC, PE Ins, TC Brd, PVC Jkt

RS485 1×2×24AWG Tinned Copper, PE Insulation, Tinned Copper Braid Shield, PVC Grey Outer Jacket

RS485 1×2×24AWG, TC, PE Ins, TC Brd, PVC Jkt
Specifications

Application

Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

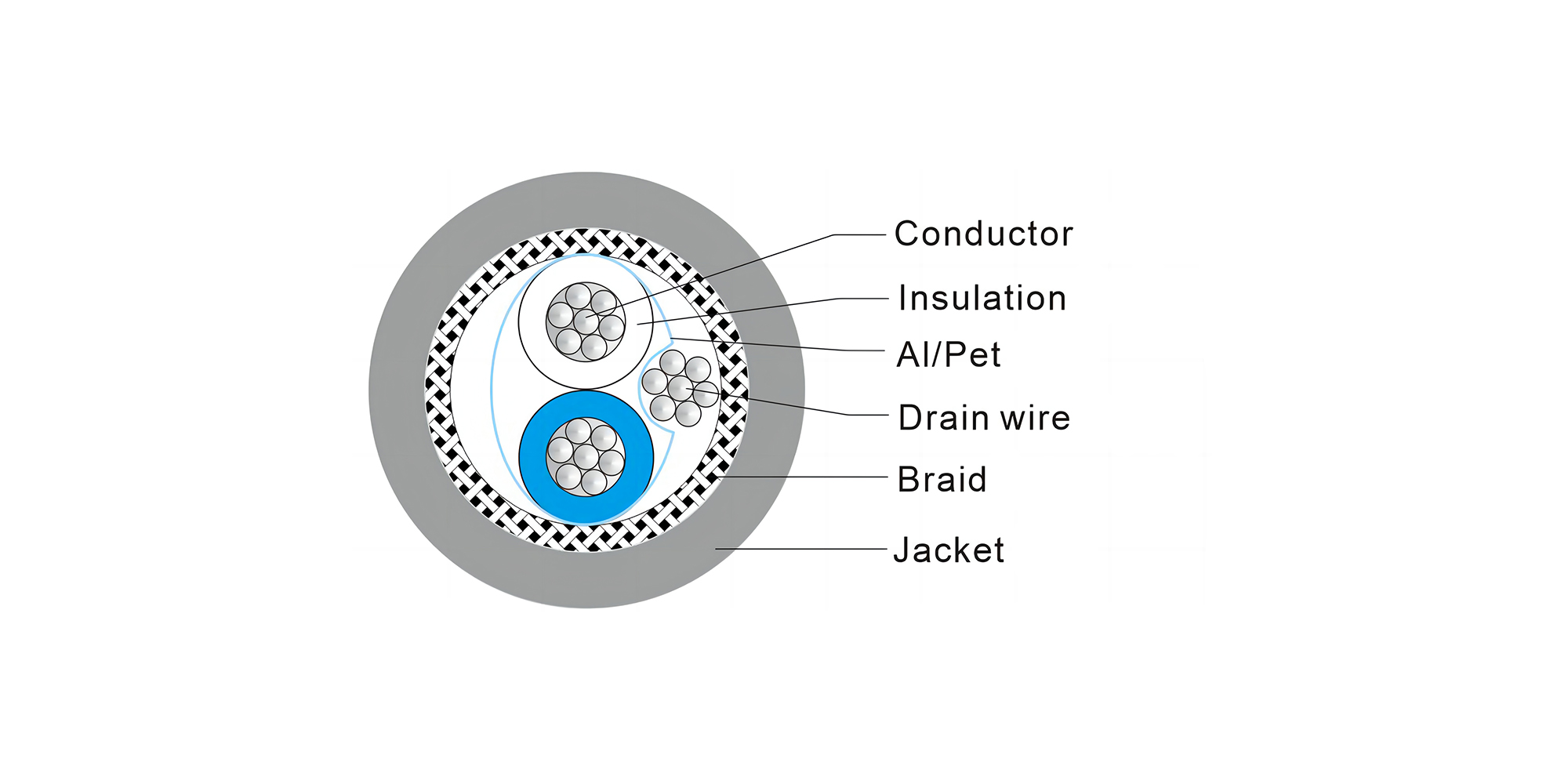

Cable structure

Conductor

Cross-section24AWG/2C
Structure7/0.20±0.005mm
MaterialTinned copper


Insulation

Insulation O.D1.75±0.10mm
MaterialFoam PE
ColorWhite, Blue


Shielded

Braid MaterialTinner copper
Coverage90%


Outer Jacket

Jacket O.D5.90±0.30mm
MaterialPVC
ColorGrey


Technical data

Electrical parameters

Inner Conductor DC Resistance≤90.9Ω/km
Capacitance Conductor to ConductorNom. 42pF/m(max47pF/m)
Capacitance Conductor to ShieldedNom. 75.5pF/m(max83pF/m)
Characteristic Impedance120 ±12Ω
Maximum Operating Current2.1A
Max. Operating Voltage300V


physical parameters

Temperature Range-20℃ to +60℃
