RS485 1PR×0.75mm2, TC, PE Ins, TC Brd, PVC Jkt

RS485 1Pair×0.75mm2 Stranded Tinned Copper, PE Insulation, Tinned Copper Braid Shield, PVC Black Outer Jacket

RS485 1PR×0.75mm2, TC, PE Ins, TC Brd, PVC Jkt
Specifications

Application

Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

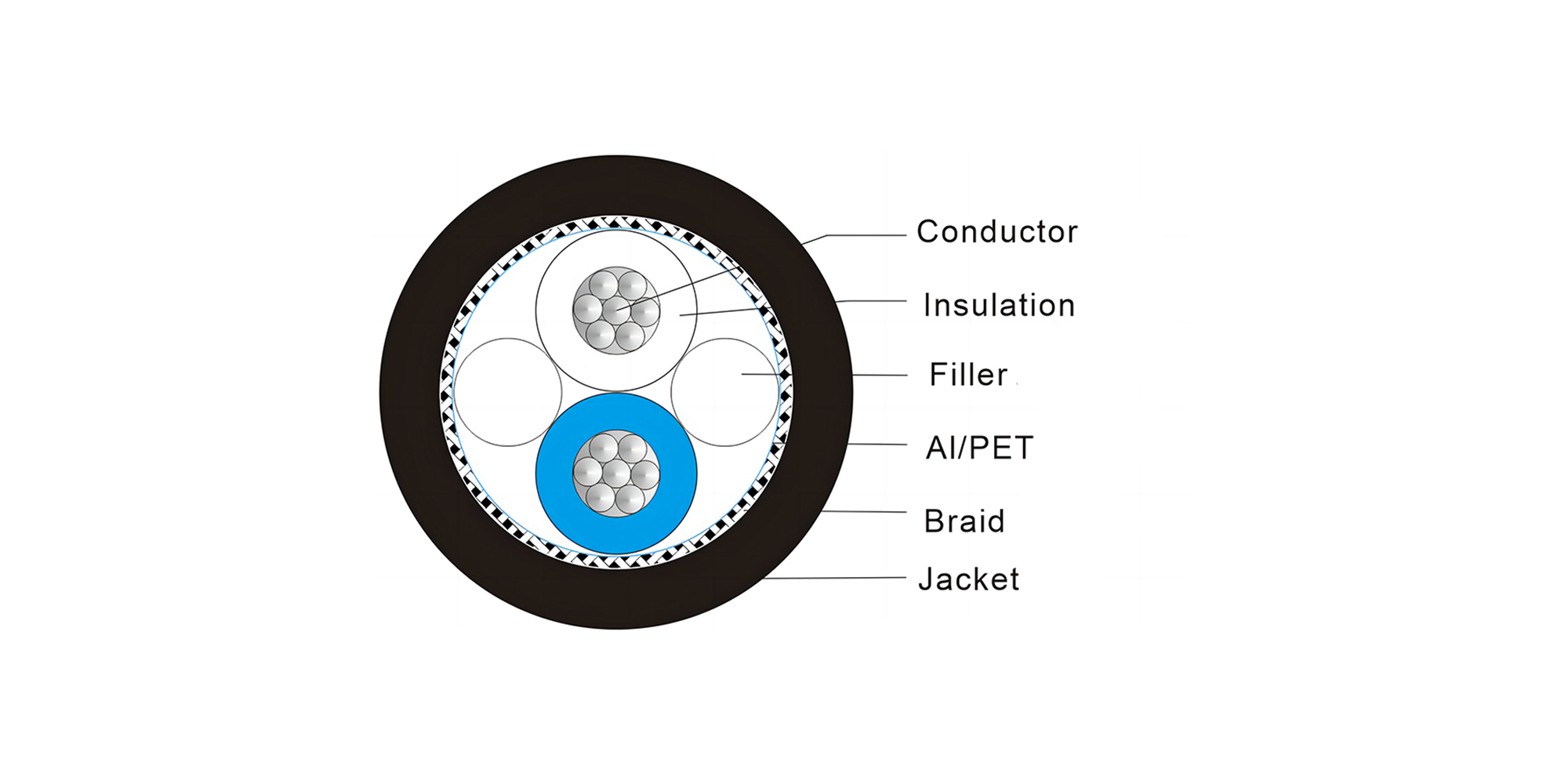

Cable structure

Conductor

Cross-section0.75mm2/1PR
Structure7/0.37±0.005mm
MaterialStranded Tinned copper


Insulation

Insulation O.D3.10±0.10mm
MaterialPE
ColorWhite, Blue


Shielded

Braid MaterialTinner copper
Coverage80%


Outer Jacket

Jacket O.D8.80±0.20mm
MaterialPVC
ColorBlack


Technical data

Electrical parameters

Inner Conductor DC Resistance≤24.8Ω/km
Capacitance Conductor to ConductorNom. 36pF/m
Characteristic Impedance120 ±10%Ω
Test Voltage1kV/1min,no breakdown


physical parameters

Temperature Range-20℃ to +60℃
Fire ResistanceIEC 60332-1-2
