Profinet 5e4×22AWG, BC, PE Ins, LSZH Jkt, TC Brd, LSZH Jkt

Profinet 5e4×22AWG Bare Copper, PE Insulation, Natural LSZH Inner Jacket, Tinned Copper Braid Shield, Green LSZH Outer Jacket

Profinet 5e4×22AWG, BC, PE Ins, LSZH Jkt, TC Brd, LSZH Jkt
Specifications

Application

PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

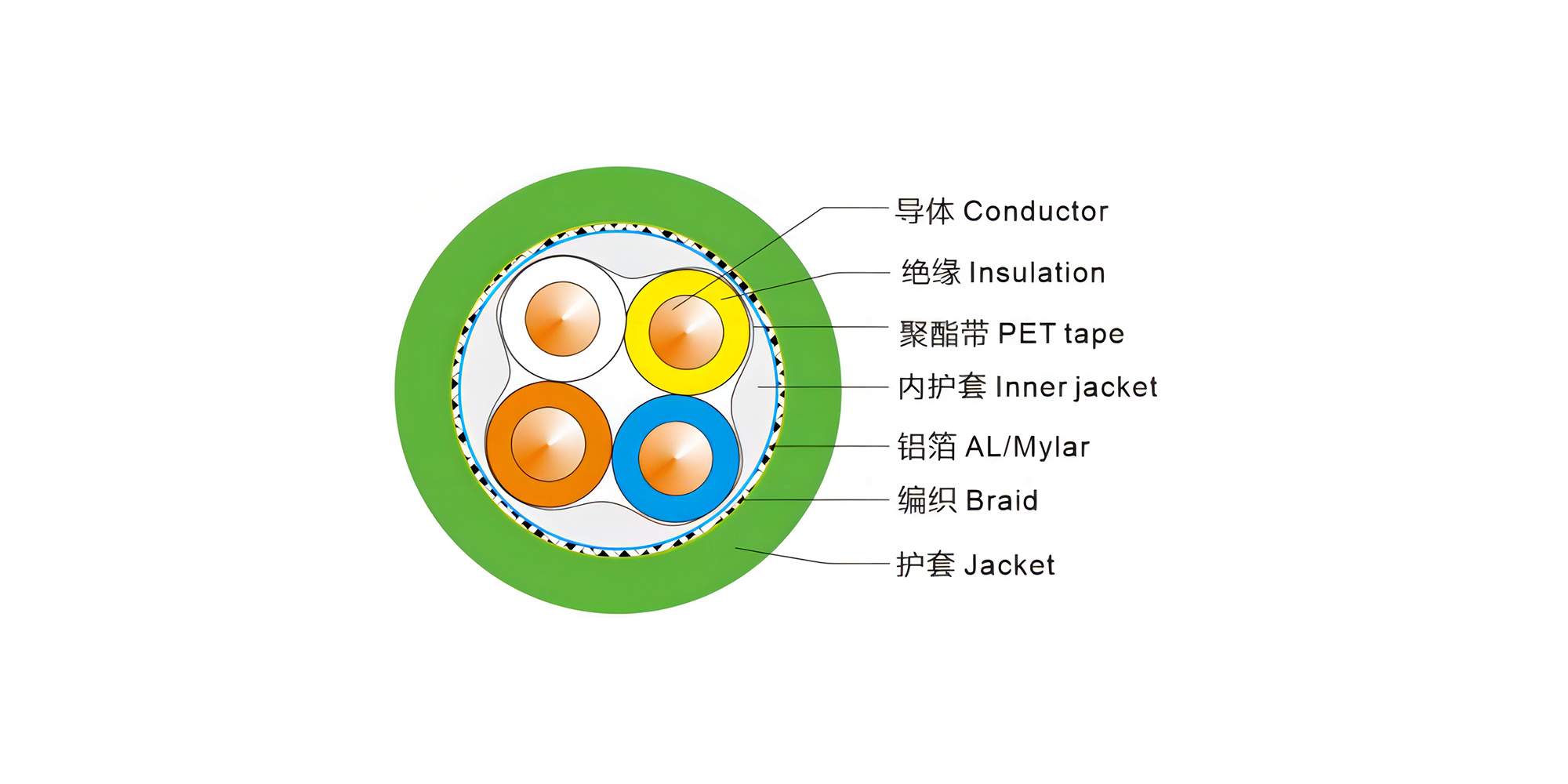

Cable structure

Conductor

Cross-section22AWG/4C
Structure1/0.643±0.005mm
MaterialBare copper wire


Insulation

Insulation O.D1.50±0.10mm
MaterialPE
ColorWhite,Yellow, Blue, Orange


Inner Jacket

Jacket O.D4.30±0.30mm
MaterialLSZH
ColorNatural


Shielded

Braid MaterialTinner copper
Coverage≥80%


Outer Jacket

Jacket O.D6.50±0.20mm
MaterialLSZH
ColorGreen


Technical data

Electrical parameters

Inner Conductor DC Resistance≤59.1Ω/km
Characteristic Impedance
Nom. 100 Ω


physical parameters

Temperature Range -40℃~+70℃
UV ResistanceEN50289 750H
Oil ResistanceEN60811-404
Flame ResistanceCPR Cca
