Profibus PA 1×2×18AWG, Str BC, PE Ins, TC Brd, PVC Jkt, SWA, Blue PVC Jkt

Profibus PA 1×2×18AWG Stranded Bare Copper, Foam PE Insulation, Tinned Copper Braid Shield, Blue PVC Inner Jacket, Steel Wire Sprial Armour, Blue PVC Jacket

Profibus PA 1×2×18AWG, Str BC, PE Ins, TC Brd, PVC Jkt, SWA, Blue PVC Jkt
Specifications

Application

Harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

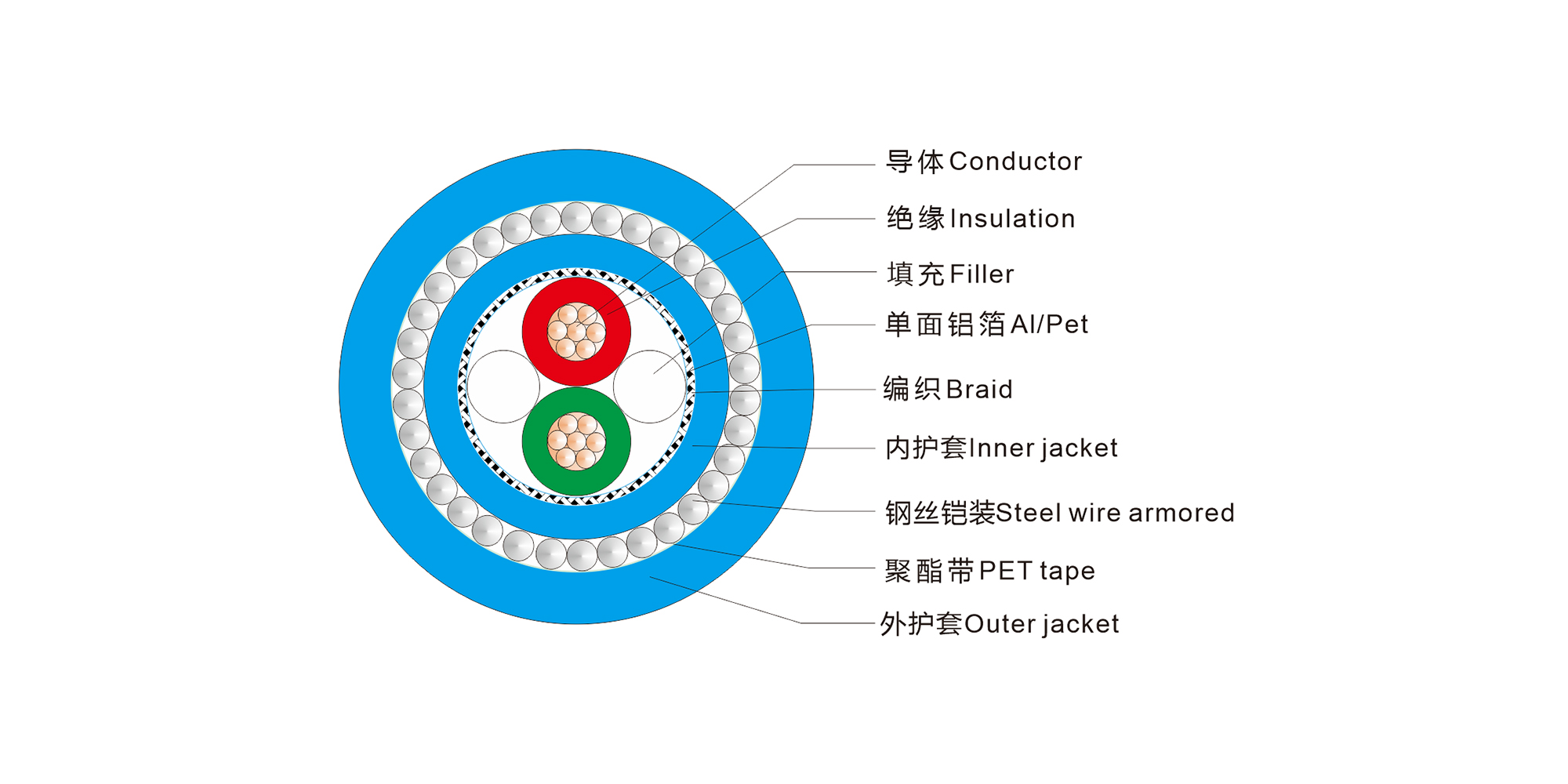

Cable structure

Conductor

Cross-section18AWG/2C
Structure7/0.40±0.005mm
MaterialStranded Bare copper


Insulation

Insulation O.D2.55±0.10mm
MaterialFoam PE
ColorRed, Green


Shielded

BraidTinned copper
CoverageAbout 80%


Inner Jacket

Jacket O.D8.00±0.20mm
MaterialPVC
ColorBlue


Armoured

Braid ArmouredSteel Wire Sprial Armour
Coverage>90%


Outer Jacket

Jacket O.D13.0±0.50mm
MaterialPVC
ColorBlue


Technical data

Electrical parameters

Inner Conductor DC Resistance≤21.9Ω/km
Characteristic Impedance100 ±10Ω@3~20Mhz
Capacitance Conductor to ConductorNom. 41pF/m@800Hz
Insulation DC Resistance≥1GΩ·km
Test Voltage2000V/1min,no break down


Physical parameters

Temperature Range-20℃ to +75℃
Flame ResistanceIEC60332-3-24
