Application
Harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

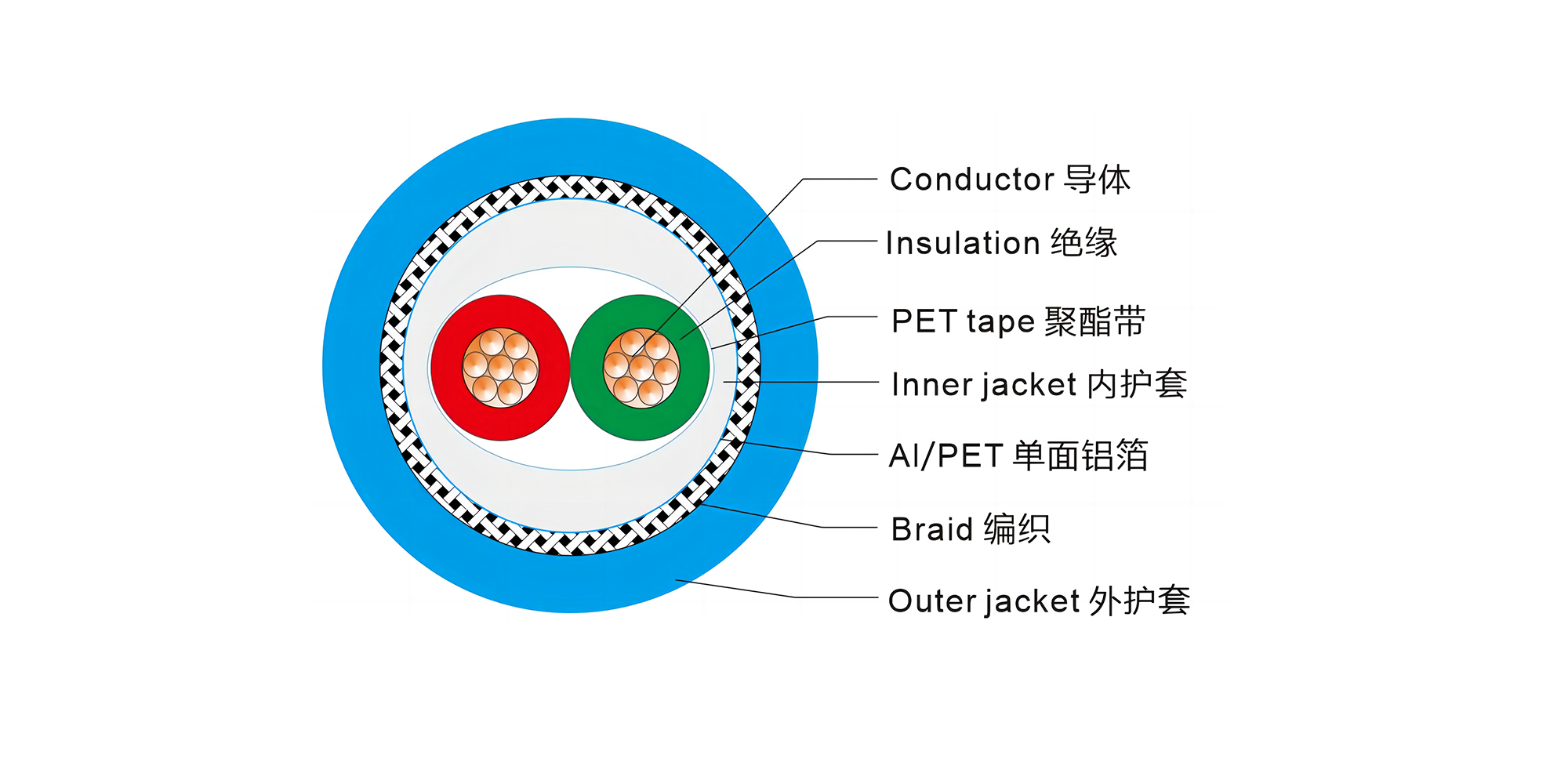

Cable structure
Conductor
Cross-section | 18AWG/2C |
---|
Structure | 7/0.40±0.005mm |
---|
Material | Stranded Bare copper |
---|
Insulation
Insulation O.D | 2.55±0.10mm |
Material | Foam PE |
Color | Red, Green |
Inner Jacket
Jacket O.D | 5.80±0.20mm |
Material | LSZH |
Shielded
Shielded Tape | AI/PET |
Braid | Tinned Copper |
Coverage | ≥80% |
Outer Jacket
Jacket O.D | 8.00±0.20mm |
Material | LSZH |
Color | Blue |
Technical data
Electrical parameters
Inner Conductor DC Resistance | ≤21.9Ω/km |
Characteristic Impedance | 100 ±10Ω@3~20Mhz |
Capacitance Conductor to Conductor | Nom. 41pF/m@800Hz |
Test Voltage | 2000V/1min,no break down |
Insulation DC Resistance | ≥1GΩ·km |
Physical parameters
Temperature Range | -20℃ to +75℃ |
Flame Resistance | IEC 60332-1-2 |
