Communication Cable RS485 2×2×24AWG, 120OHM, TC, PE Ins, AI/PET/TC Brd, LSZH Jkt

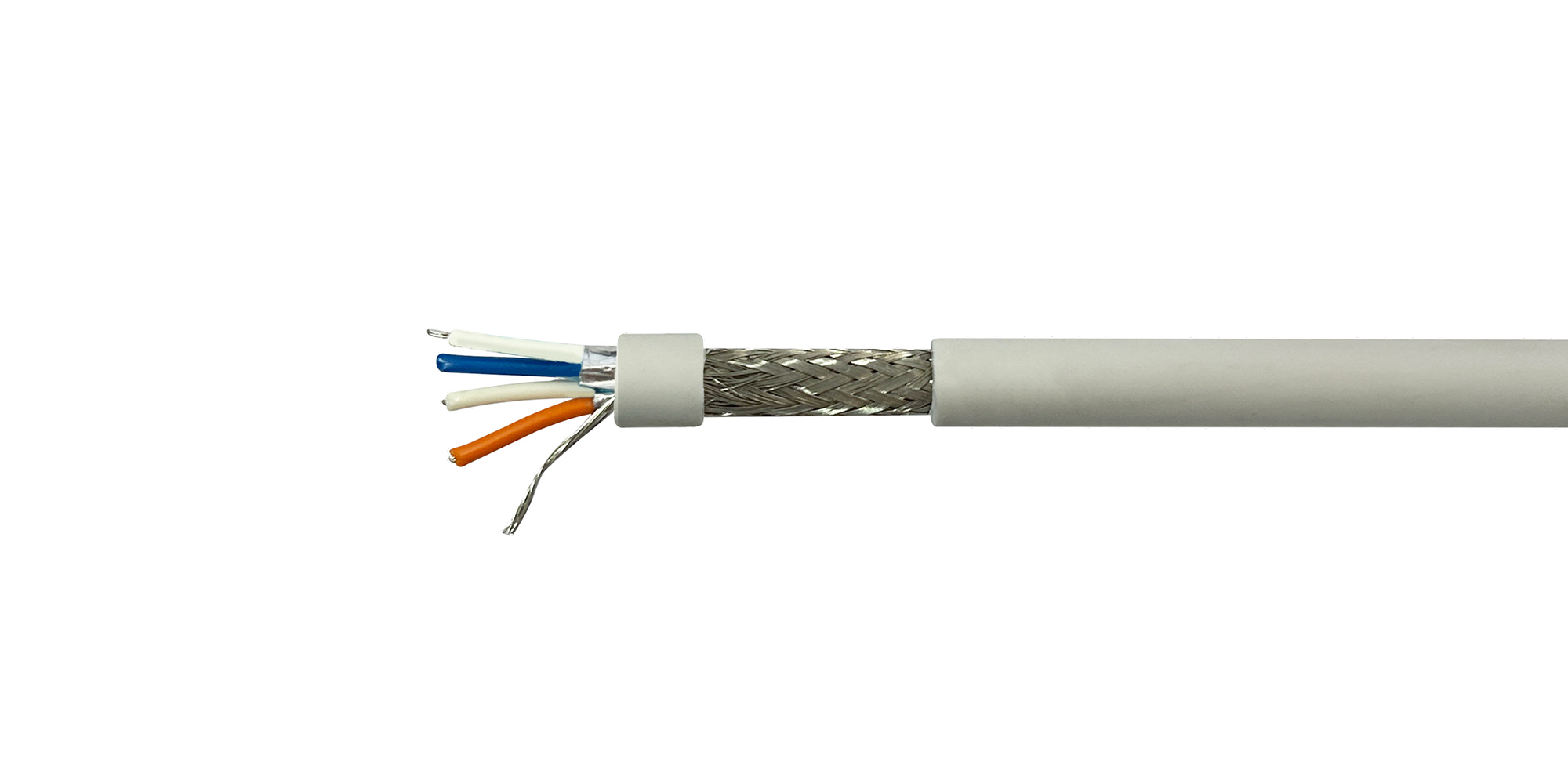

Communication Cable RS485 2×2×24AWG, 120OHM, Tinned Copper, Foam PE Insulation, AI/PET/Tinned Copper Braid Shield, White LSZH Outer Jacket

Communication Cable RS485 2×2×24AWG, 120OHM, TC, PE Ins, AI/PET/TC Brd, LSZH Jkt
Specifications

Application

Applications The CAN bus cable for cable tracks has FEP core insulation and very good oil resistance. It is used in the exchange of digital information, Controller Area Network (CAN), for faster data transmission.

Cable structure

Conductor

Cross-section24AWG/2P
Structure7/0.20±0.008mm
MaterialTinned copper


Insulation

Insulation O.D1.40±0.10mm
MaterialFoam PE
ColorWhite(Orange),Orange, White(Blue),Blue


Twist pair

Twist ColorWhite(orange)/Orange,White(Blue)/Blue
O.D2.80±0.30mm


Shielded

Braid MaterialTinned copper
Shielded TapeAl/PET
CoverageNom. 90%


Jacket

Jacket O.D7.20±0.50mm
MaterialLSZH
ColorWhite


Technical data

Electrical parameters

Velocity of   propagation

Inner Conductor DC Resistance≤90.9Ω/km
Characteristic Impedance120 ±12Ω
Capacitance Conductor to ConductorNom. 42pF/m
Capacitance Conductor to ShieldedNom. 75.5pF/m
Attenuation2.0dB/100m(at 1MHz)
Testing Voltage1000V r.m.s/5s  Cond/Cond, 1000V r.m.s/5s  Cond/Screen
Operating Voltage300V


physical parameters

Temperature Range-20℃ to +75℃
Flame ResistanceIEC60332-1
UV ResistanceUL1581-1200
HalogenIEC60754-1/2
