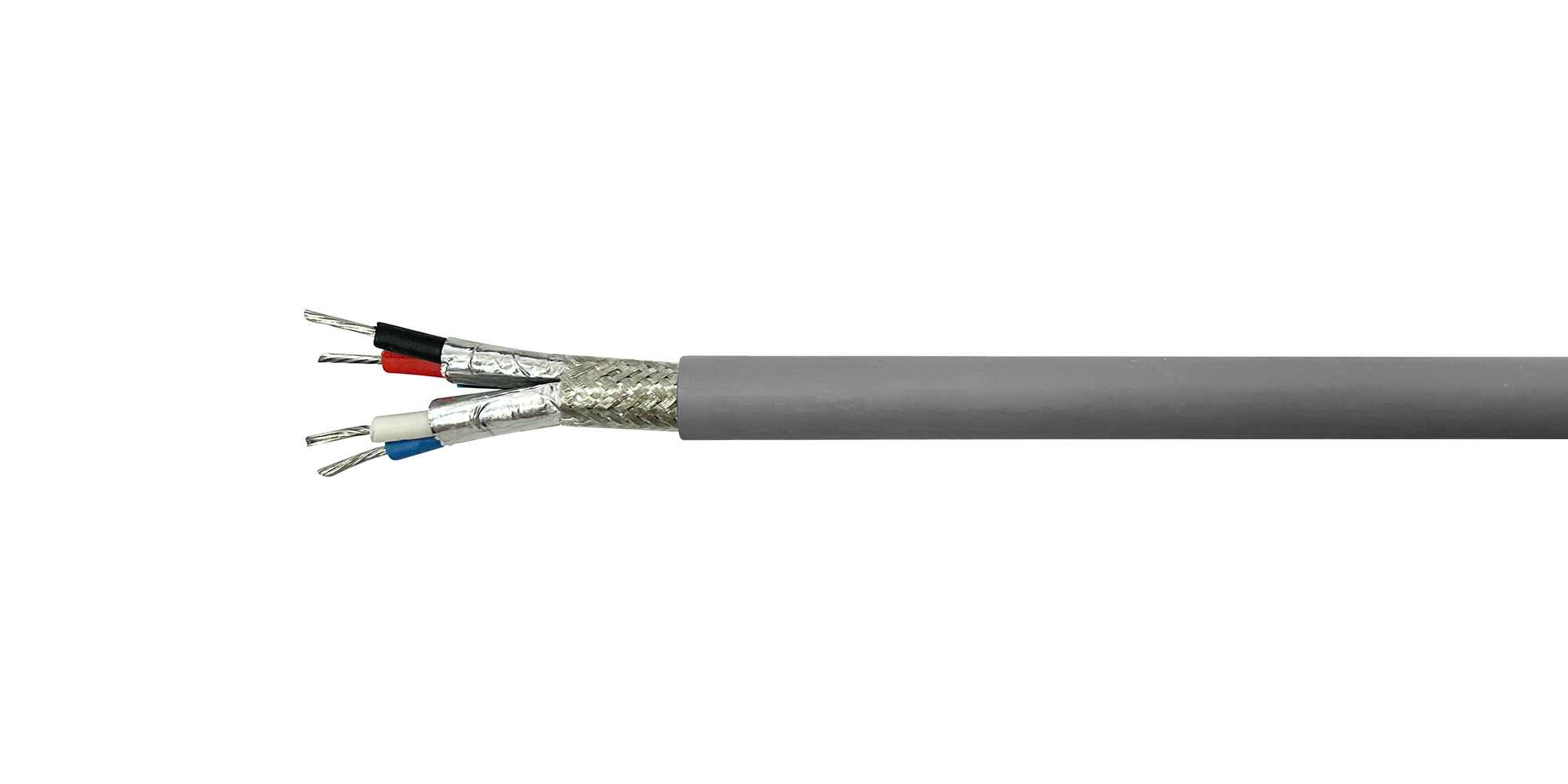

DeviceNET 1Pair × 15AWG+1Pair × 18AWG Tinned Copper, PVC/Foam PE Insulation, Tinned Copper Braid Shield, PVC Outer Jacket
Applications The CAN bus cable for cable tracks has FEP core insulation and very good oil resistance. It is used in the exchange of digital information, Controller Area Network (CAN), for faster data transmission.
| Cross-section | 15AWG/1P, 18AWG/1P |
|---|---|
| Structure | 19/0.32±0.01mm, 19/0.254±0.008mm |
| Material | Tinned copper |
| Insulation O.D | 2.65±0.10mm, 3.60±0.10mm |
| Material | PVC, Foam PE |
| Color | Red, Black, White,Blue |
| Braid Material | Tinned copper |
| Coverage | ≥65% |
| Jacket O.D | 12.20±0.30mm |
| Material | PVC Jacket |
| Color | Grey |
| Inner Conductor DC Resistance | 15AWG≤11.3Ω/km, 18AWG≤22.7Ω/km |
| Characteristic Impedance | Nom. 120 Ω |
| Capacitance Conductor to Conductor(Data Pair) | Nom. 41pF/m |
| Capacitance Conductor & Shield(Data Pair) | Nom. 76pF/m |
Velocity of Propagation(Data Pair) | Nom. 75% |
| Temperature Range | -20℃ to +75℃ |
| Flame Resistance | IEC 60332-1-2 |
