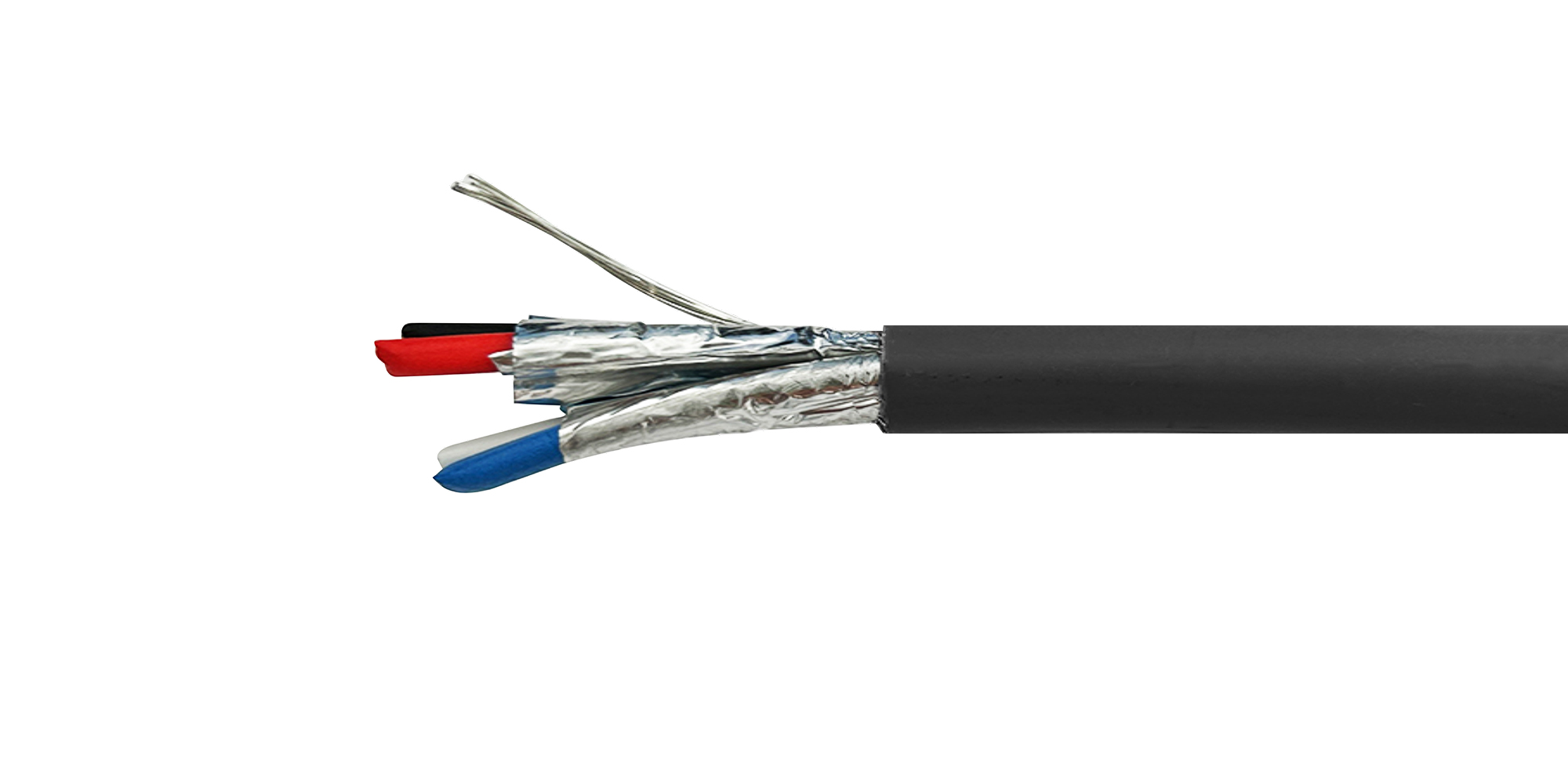

DeviceNET 1P×22AWG+1P×24AWG, TC, PVC/PE Ins, PVC Jkt

DEVICENET 1 Pair*22AWG+1 Pair*24AWG Tinned Copper, PVC/Foam-PE Insulation, PVC Outer Jacket

DeviceNET 1P×22AWG+1P×24AWG, TC, PVC/PE Ins, PVC Jkt
Specifications

Application

Applications The CAN bus cable for cable tracks has FEP core insulation and very good oil resistance. It is used in the exchange of digital information, Controller Area Network (CAN), for faster data transmission.

Cable structure

Conductor

Cross-section22AWG/1P(Power wire Pair),  22AWG/1P(Power wire Pair)
Structure19/0.16±0.008mm, 19/0.127±0.008mm
MaterialTinned copper, Tinned copper


Insulation

Insulation O.D1.90±0.10mm, 1.90±0.10mm
MaterialPVC, Foam-PE
ColorRed,Black, White,Blue


Jacket

Jacket O.D6.40±0.20mm
MaterialPVC
ColorBlack


Technical data

Electrical parameters

Inner Conductor DC Resistance22AWG≤57.4Ω/km, 24AWG≤91.8Ω/km
Characteristic Impedance (Data Pair)Nom. 120 Ω
Capacitance Conductor to Conductor(Data Pair)Nom. 41pF/m
Operation Voltage300V


physical parameters

Temperature Range-20to +70
